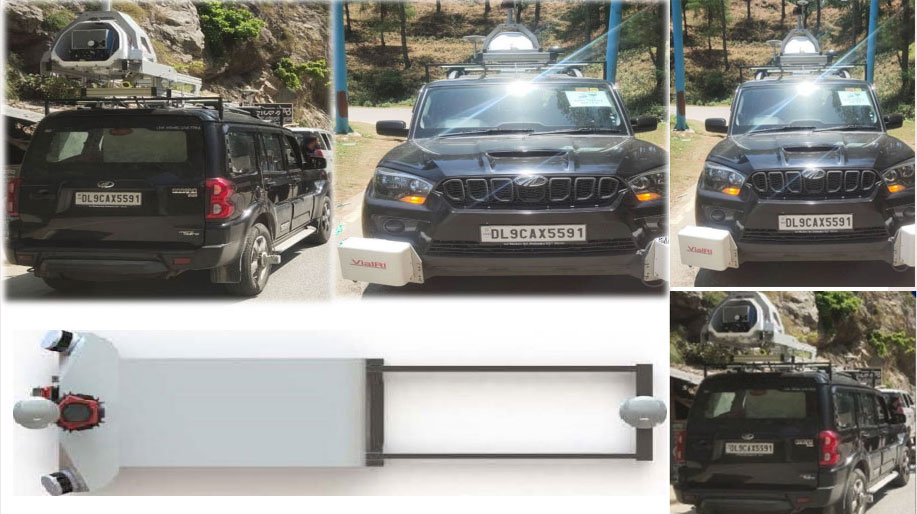

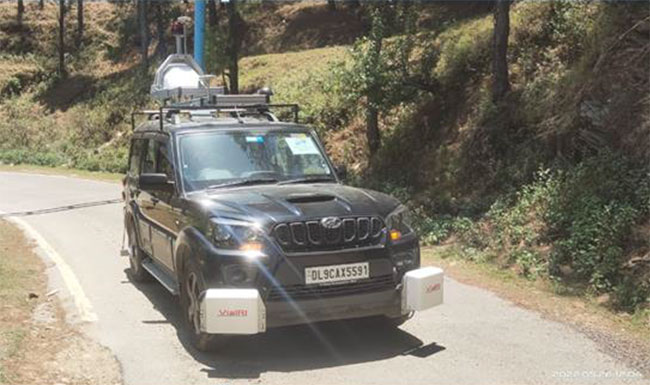

The Network Survey Vehicle is based on the latest survey techniques utilizing Laser, Global Positioning System and Video image processing tools etc. The Survey Vehicle is used for automatic collection of road inventory and pavement condition related data required for Road Asset Management, Pavement Maintenance Management System and Road Safety Audit Related Studies

In line with its commitment to provide better roads to commuters, NHAI and other State Government agencies in India and Overseas has decided to deploy Network Survey Vehicle (NSV) to enhance quality of the national highways. Carrying out road condition survey using NSV has been made mandatory at the time of certifying completion of the project and every six months thereafter.( Or as per Client Requirement)

TECHNICAL SPECIFICATIONS

• LiDAR sensors - Velodyne VLP 16 - 2No.
• Trimble Applanix POS LV 125
• Ladybug 5+ FLIR
• Distance Measuring Instrument
• Mounting Kit
• ViaPPS Software Suit
• Data Collection Computers/Laptops and Other accessories are equipped in unit

NSV SPECIFICATION

• Latest Product in scanning and Mapping Technology from ViaTech
• Light and Compact design
• Flexible frame - can be installed/removed from a vehicle easily
• Easy Transport - Entire assembly can be carried in a transport case
• Design Flexibility - Easy system upgrade, the addition of high-resolution cameras, higher GNSS system, multiple LiDAR etc
• Data Compatibility - Export into. las/. laz and another 3D point cloud compatible format
• Enhanced remote support capabilities
• Export to Orbit GT
• Suitable for Corridor and Utility Mapping

ACTIVITIES WHICH CAN PERFORMED BY USING AGICL'S NSV

• Almondz Network Survey Vehicle (NSV) mounted with equipment such as Laser based automatic crack detection, high resolution digital cameras for RoW and surface pavement defects, high accuracy DGPS receiver and in vehicle data processing software to accurately measure pavement surface properties such as cracking, potholes,
• Longitudinal and transversal profile
• Rut depth, rut area and rut area volume
• Crossfall & Crossfall Requirement, curve radius
• Longitudinal deflection/Bumps
• IRI and MPD
• Width of the lane Bad joints of the asphalt / Concrete
• Crack parameters
• Tunnel/Bridge profile including height

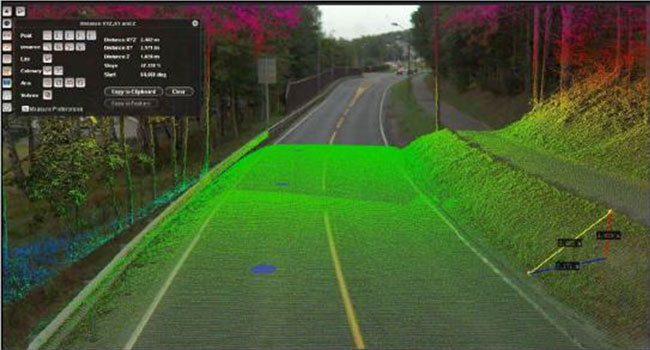

• 3D data to external standard format such as xyzi, las/laz
• WEB interface and 360 photo integration

ADVANTAGES OF HIRING NSV OFFERED BY ALMONDZ

• The deployment of Almondz NSV will help in enhancing the overall quality of the highways as NSV uses the latest survey techniques such as high-resolution digital camera for 3600 imagery, Record images/videos at regular intervals, Laser Road Profilometer and other related technology for measurement of distresses in road surface
• Almondz NSV will also help to collate data to analyse the road condition including measurement of the road surface, surface cracking, potholes and patches. Apart from this, NSV will also provide data insights relating to side drains, road furniture, etc
• The data will help in maintaining up to date asset inventory and road assets condition status. Apart from delivering vital information on road network planning, providing relevant information on other aspects such as development of road safety measures, etc. it will also assist in developing highway maintenance strategies, analysis of maintenance and selection of optimal maintenance regime
• The data collected through NSV surveys will highlight deficiencies in road conditions, prompting BOT operators/Govt officials to take corrective steps to bring the road condition to the desired level. This will further result in better upkeep of national highways, leading to more comfort and better travel experience for highways users
• Key Benefit : Via 3D Mapper is a cost-effective solution that can be widely used in corridor mapping for utilities, municipalities and town planning for assets mapping 3D modelling of existing infrastructure
